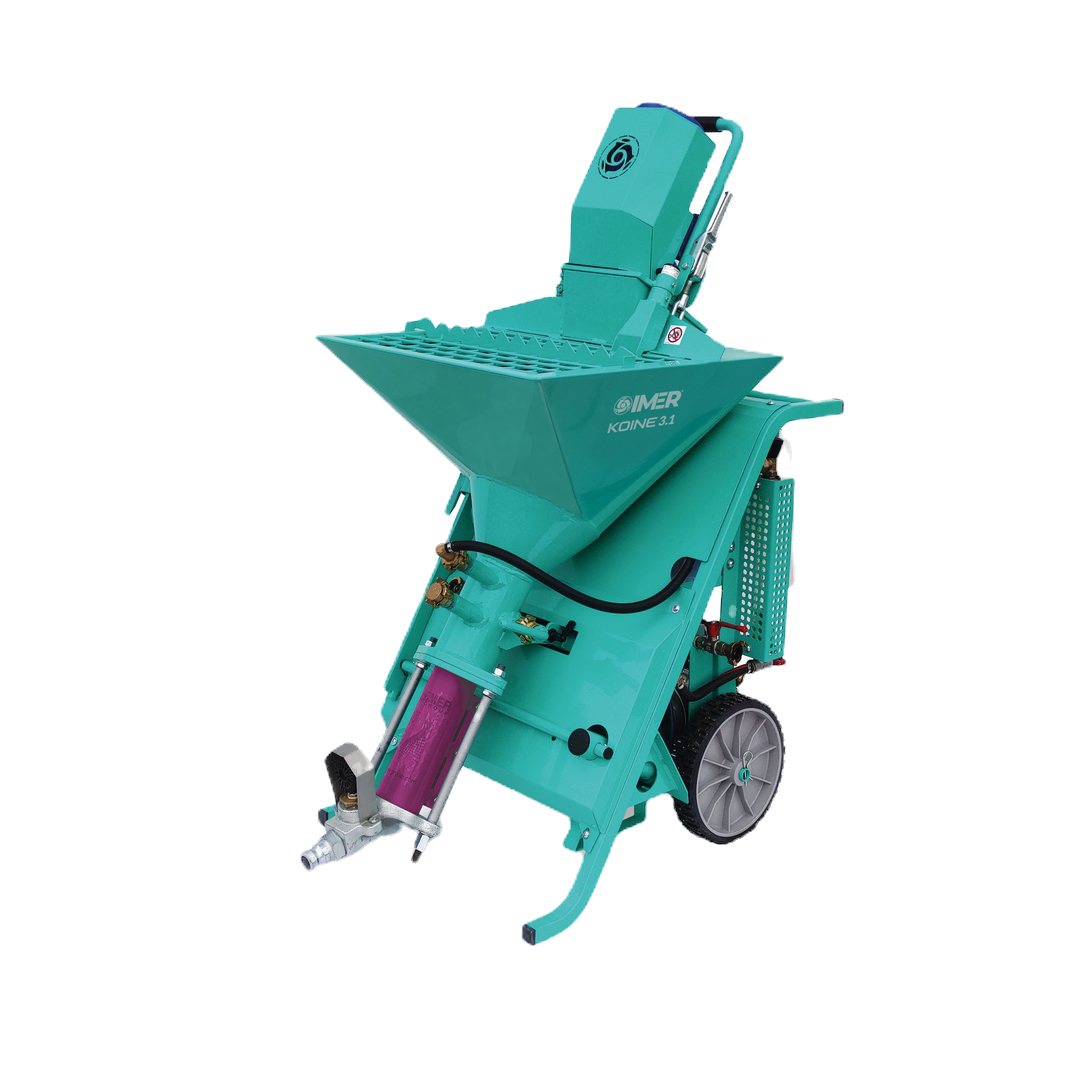

Koine 3.1 is designed to be versatile and easy to use even by the less experienced operator thanks to the proven Easy Start system and interactive display. Koine 3.1 is equipped with safety protections that immediately stop the electric motors in case of removal of the hopper grid or opening of the mixing chamber. Suitable for the application of:Dry premixed materials (Dry mode)
Mortars for gluing and smoothing thermal insulation panels
Mortars for reinforced concrete / lime-based structural reinforcement
Restoring / dehumidifying mortars for masonry walls
Binders / mortars for consolidation injections
Lime / cement / gypsum based plasters
Lime / cement / gypsum based smoothing compounds
Insulating plasters based on polystyrene or cork
Cement / anhydride-based self-levelling substrates
Mortars to protect structures from heat
Wet materials (Wet mode)
Finishing coatings, mineral smoothing compounds with silicates or quartzite
Waterproofing products, including fiber-reinforced ones
Smoothing compounds for elastomeric / water-repellent finishes
Cementitious mortars for reinforced structural reinforcement
Binders / mortars for consolidation injections
Mortars for tuckponting / grouting
Koine 3.1 turns into a pump for ready-to-use smoothing products in paste, injection mortar and tuckpointing, simply by turning a switch on the control panel and adjusting the flow rate of material to your preference. In particular, the Coat version is equipped with a 400 l / min piston compressor, optimized for the application of fiber-rich or highly viscous smoothing products.
Whats included ?
Stator and Rotor D5-2.5 Monoflex (purple)
Direct connection for hoses material DN35
Material delivery pressure gauge
Control panel with IMER A1 inverter
Remote control ready 6 selectable speeds in Dry Mode Progressive pumping speed adjustment in Wet Mode Interactive display with alphanumeric codes IM250
diaphragm compressor on board the machine (Koine 3.1) Fini VKM 402 piston compressor on board the machine (Koine 3.1 Coat)
Calpeda NGX2 self-priming stainless steel pump
Water system with flow meter and anti-freeze drainage
Easy start starting system
20 m electric cable with 16 A plug
20 m water hose
Ø 19 mm 16 m air hose
Ø 13 mm
15 m material hose
Ø 25 mm Spray gun for premixed Ø 25 with deflectors (Koine 3.1) Spray gun for smoothing compounds with deflectors + Spray gun Ø 25
